Kitchener 3

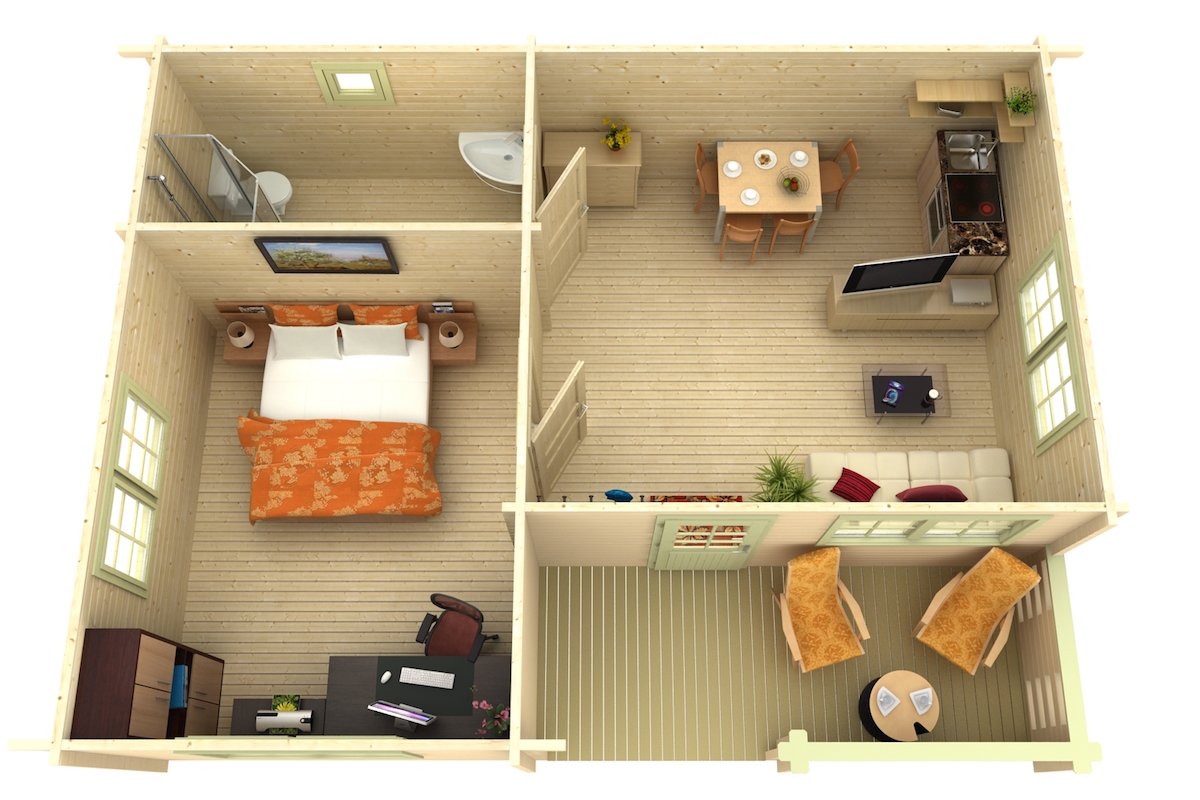

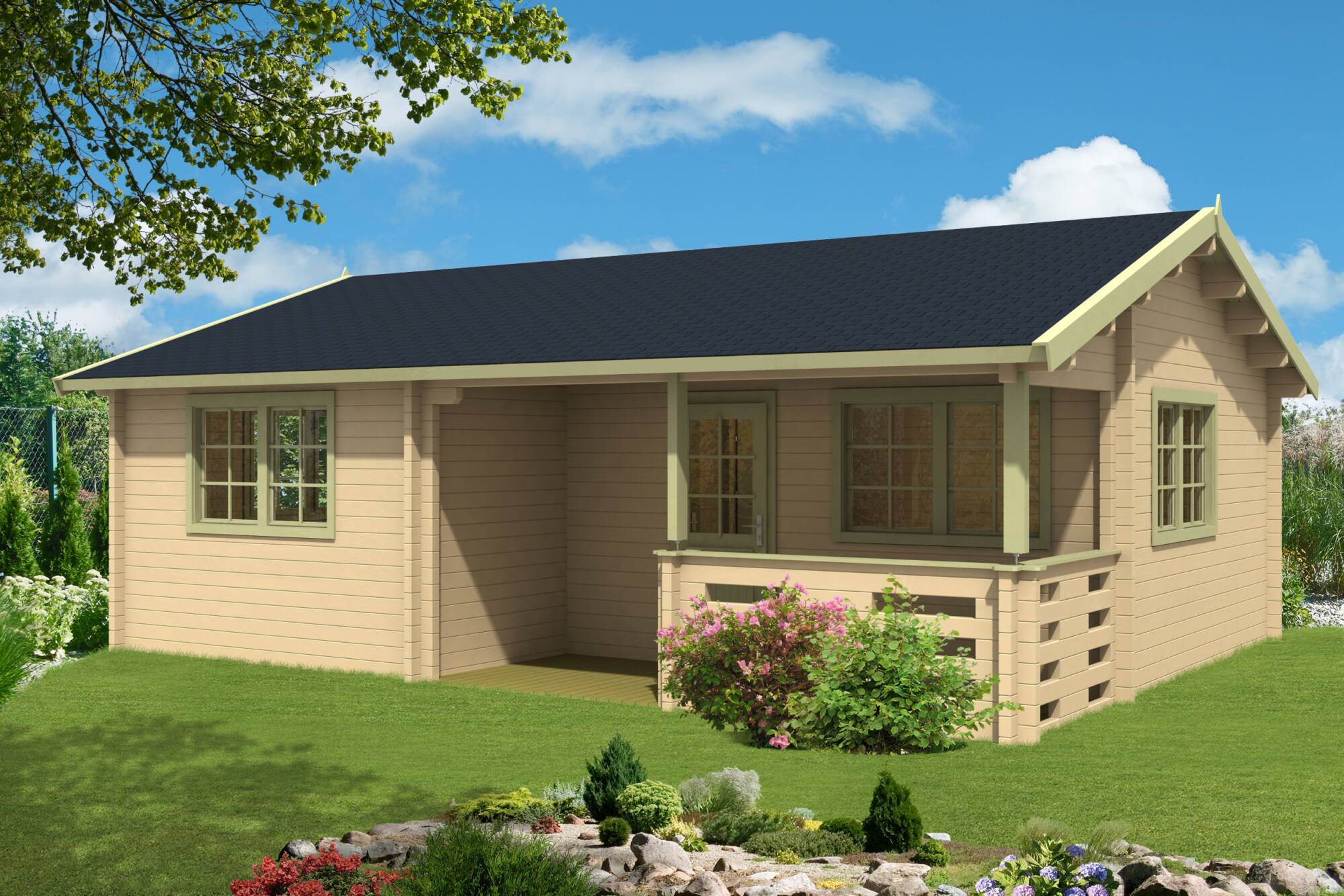

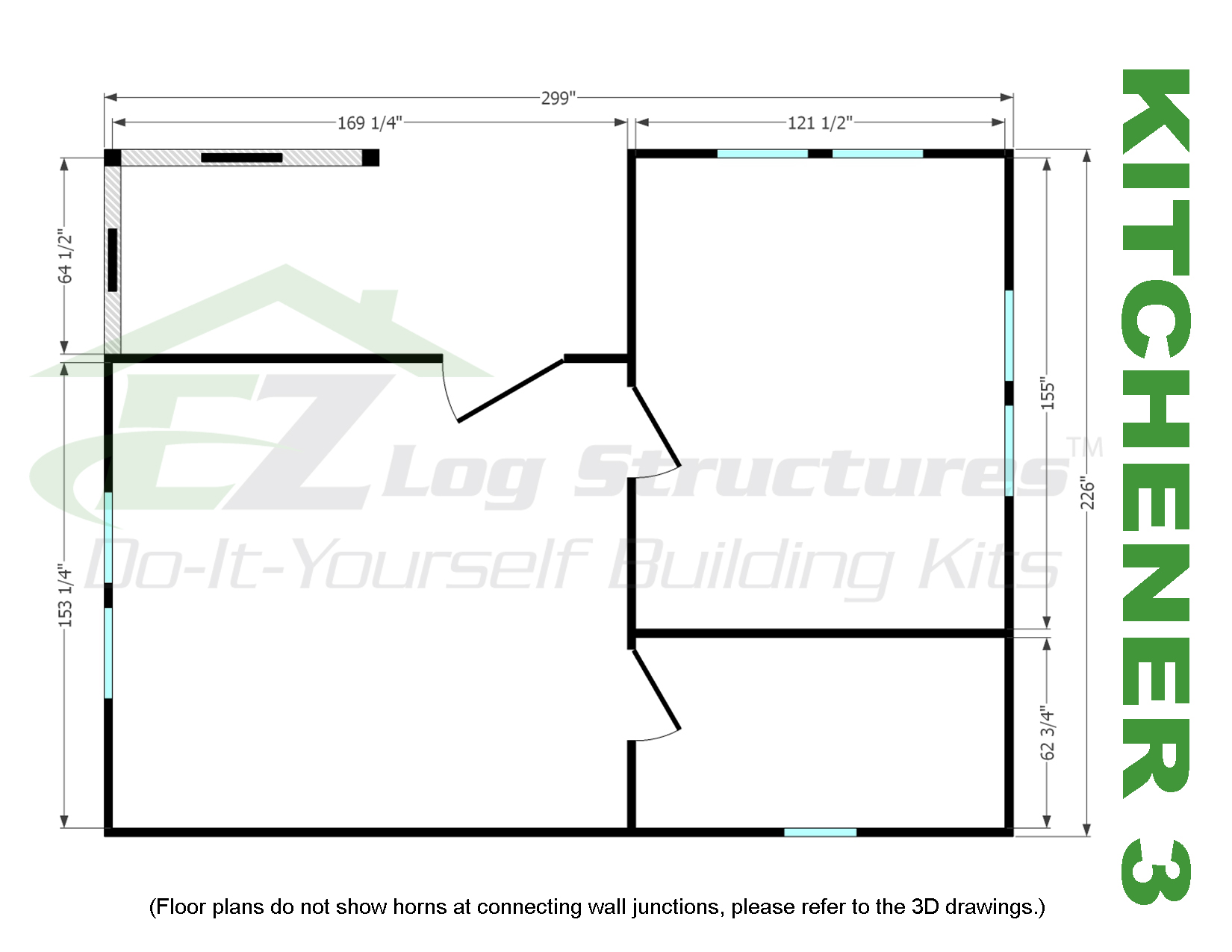

The Kitchener 3 is a PREMIUM model manufactured with 70mm (2-3/4") thick wall logs. This cabin or tiny home has 3 rooms and a covered deck area with a total footprint of 469 ft². The package is delivered to the site and ready to assemble on a concrete slab or wood subfloor.  Includes exterior & interior walls, premium double-glazed windows & doors, with hardware and mortised locks, deadbolts & keys plus interior doors with hardware and trims.

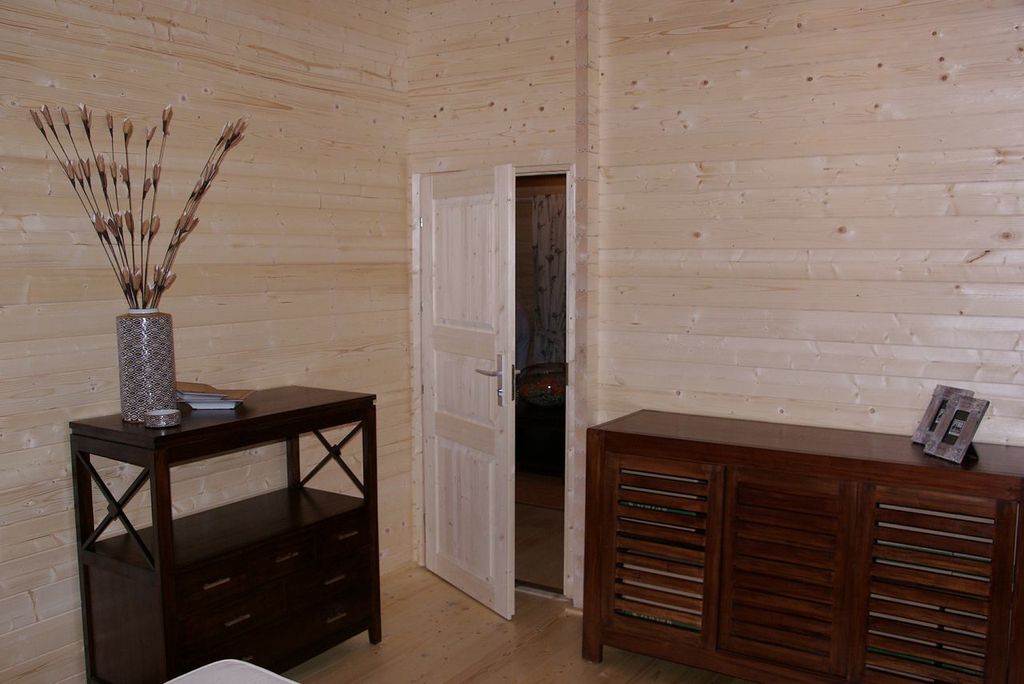

This premium model is insulated on the interior using metal brackets to mount 2×4 studs with 3/4" tongue & groove boards applied over the studs. The solid wood 2-3/4" thick has a thermal mass rating of R-12

Add R-15 insulation and achieve exceptional energy efficiency of R-27. The insulating kit is 10% of the selling price and includes brackets & T&G cover boards

Tip: Mineral wool insulation is recommended for log construction.  It’s impervious to moisture with a higher R-value per inch than fiberglass and is considered a GREEN building material, environmentally friendly insulation

Tip: The walls provide a thermal mass rating of R-12 and this compact model does not require insulation in the walls to be comfortable in most regions unless required by code. Insulate the roof and wall-mounted HVAC heating/cooling system for complete comfort.

The Kitchener 3 can be assembled in 3 to 4 days with 2 people and passes structural requirements for building codes. Modifications may be required for earthquake, heavy snow load regions, and hurricane zones.

Kit includes:
  • Ready to mount on slab or wood subfloor
  • (70mm) 2 3/4" Pre-cut numbered exterior walls
  • (70mm) 2 3/4" Pre-cut numbered interior walls
  • Vaulted ceilings
  • Roof purlins (beams)
  • Tongue & groove roof boards
  • Fascia trims
  • PREMIUM double-glazed wood windows
  • Deck railings, adjustable posts
  • Entry doors c/w locks, deadbolts, keys
  • Window & door trims
  • Interior doors c/w hardware
  • Threaded steel storm rods for perimeter wall junctions
