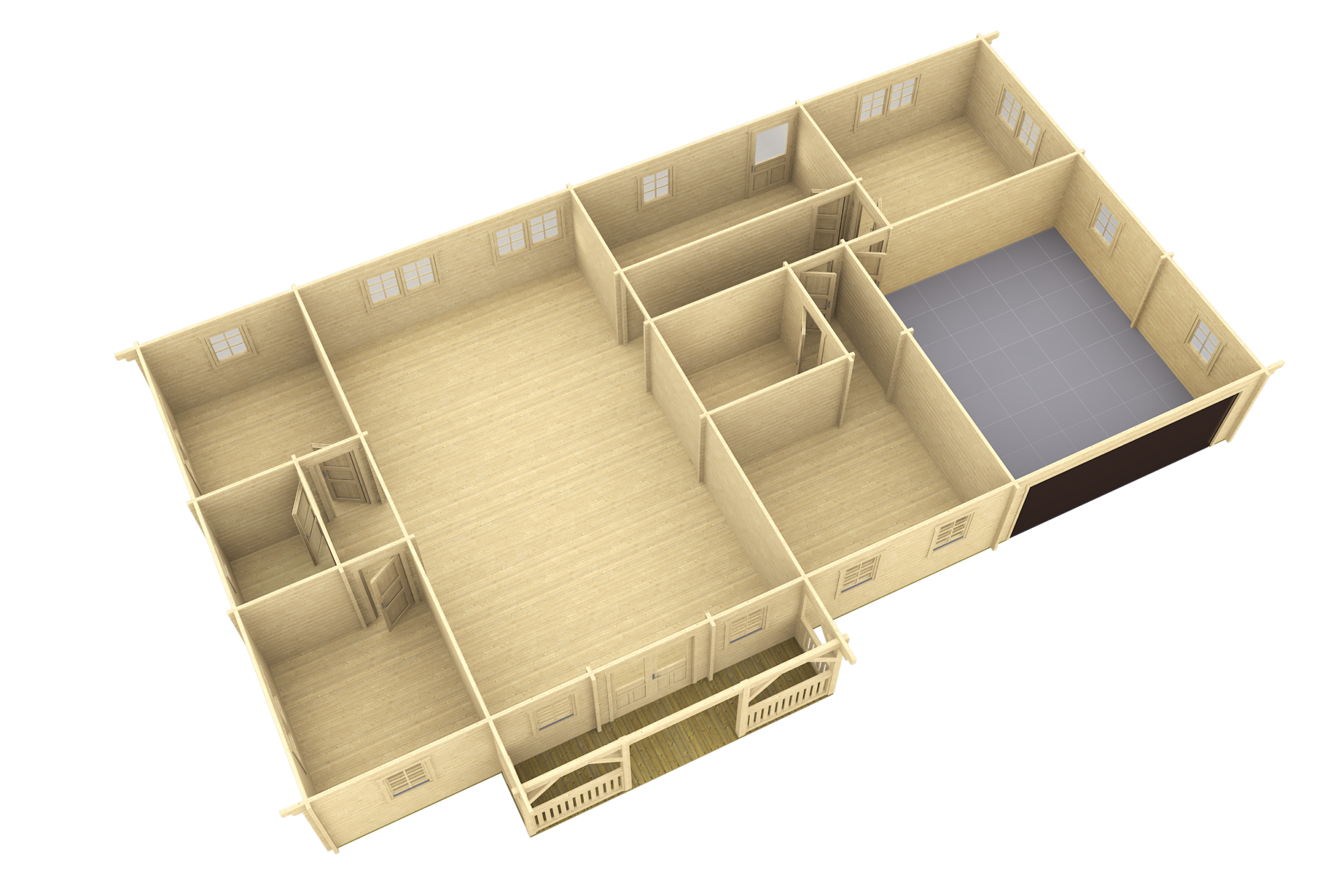

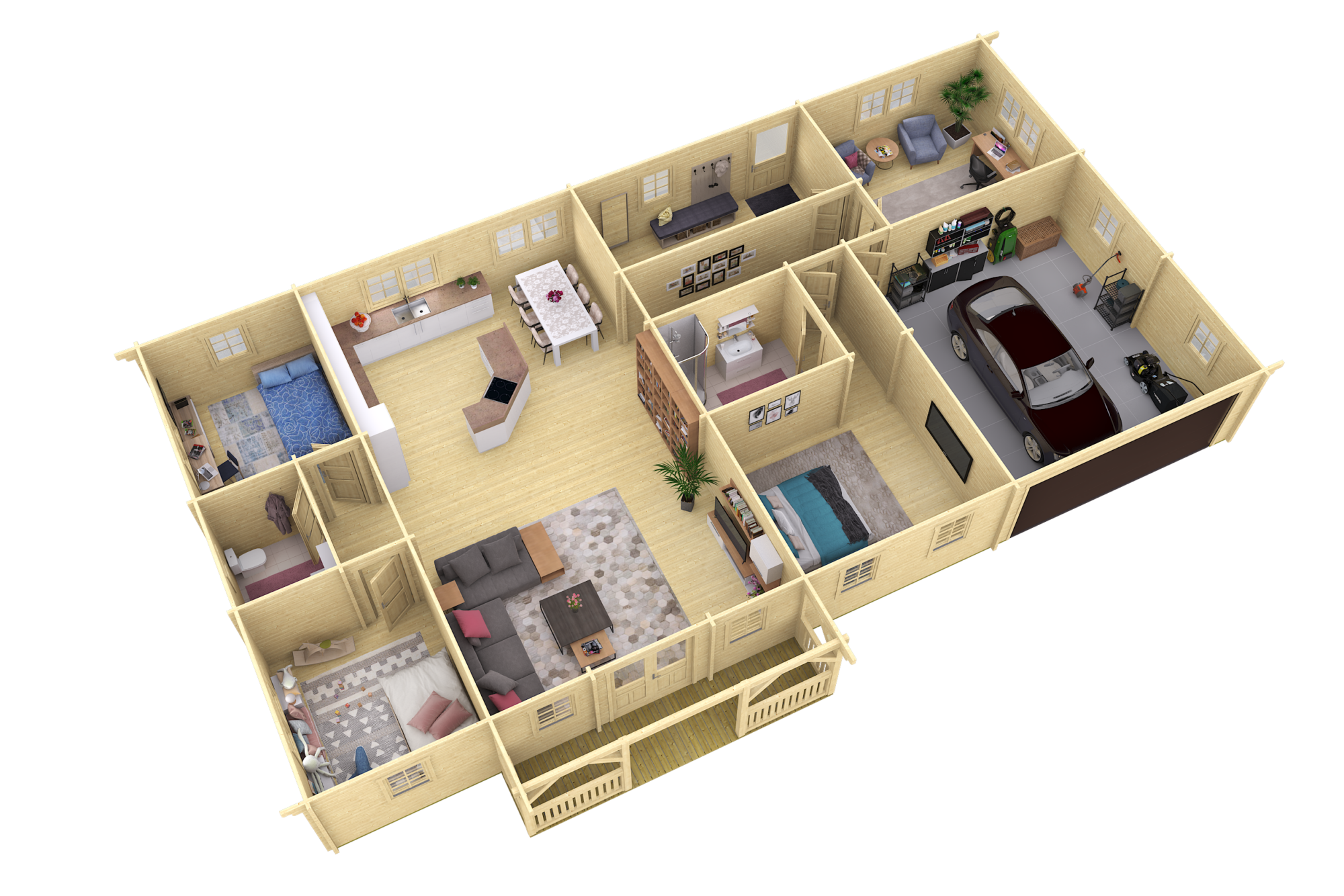

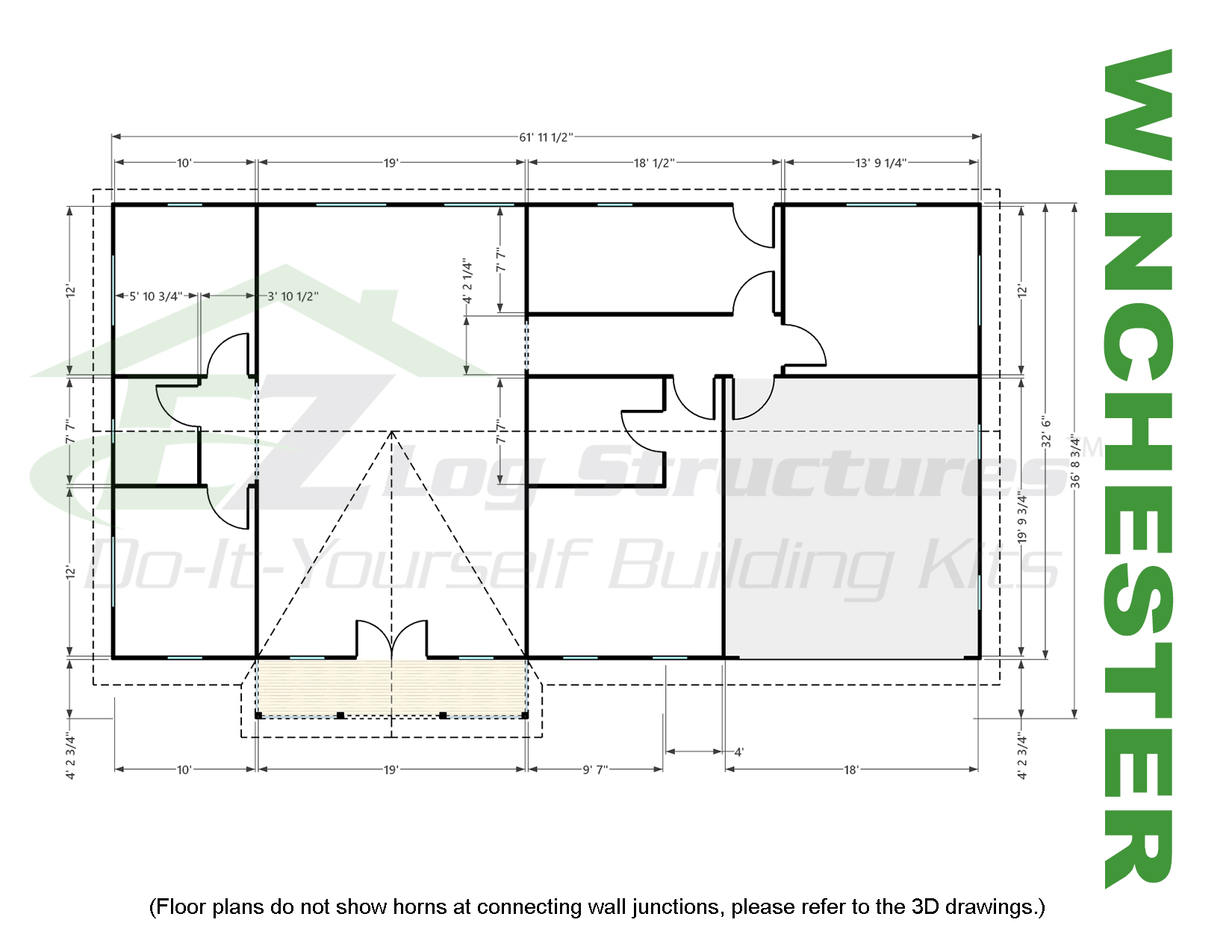

The Winchester is a solid wood home using 70mm (2-3/4?) thick wall logs. An affordable 2046 sq’ 4 bedroom home with attached garage with vaulted ceilings throughout. Delivered to site and ready to assemble on a concrete slab or wood sub floor. Includes exterior & interior walls, premium double glazed windows & doors, with hardware and mortised locks, deadbolts & keys plus interior doors with hardware and trims. The overhead garage door is NOT included, but the rough opening is prepared to fit a locally purchased door.
Insulating kit add 10% – includes metal brackets to mount studs plus 3/4? T&G wall cover boards for the perimeter walls.
Tip: Mineral wool insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass and is considered a GREEN building material, environmentally friendly insulation
The Winchester can be assembled in 15 days with 4 people and passes structural requirements for building codes. Modifications may be required for earthquake, heavy snow load regions and hurricane zones.
no floor ready to assemble on a concrete slab, wood floor over piers, crawl space or basement
pre-cut, numbered exterior walls
pre-cut, numbered interior walls
pre-cut, numbered gable components
vaulted, cathedral ceilings
pre-cut, numbered roof purlins, beams
pre-cut, numbered (18mm) 3/4? tongue & groove roof boards
pre-cut, numbered fascia boards
prebuilt sectional deck railings, vertical balustrades, handrail, adjustable posts
PREMIUM multi locking double glazed wood windows, trims
entry doors, locks, deadbolts, keys, trims
interior doors, hardware, trims
rough opening for locally supplied overhead garage door
threaded steel storm rods for perimeter wall junctions
2 spare wall logs/spare roof boards
