Toledo E

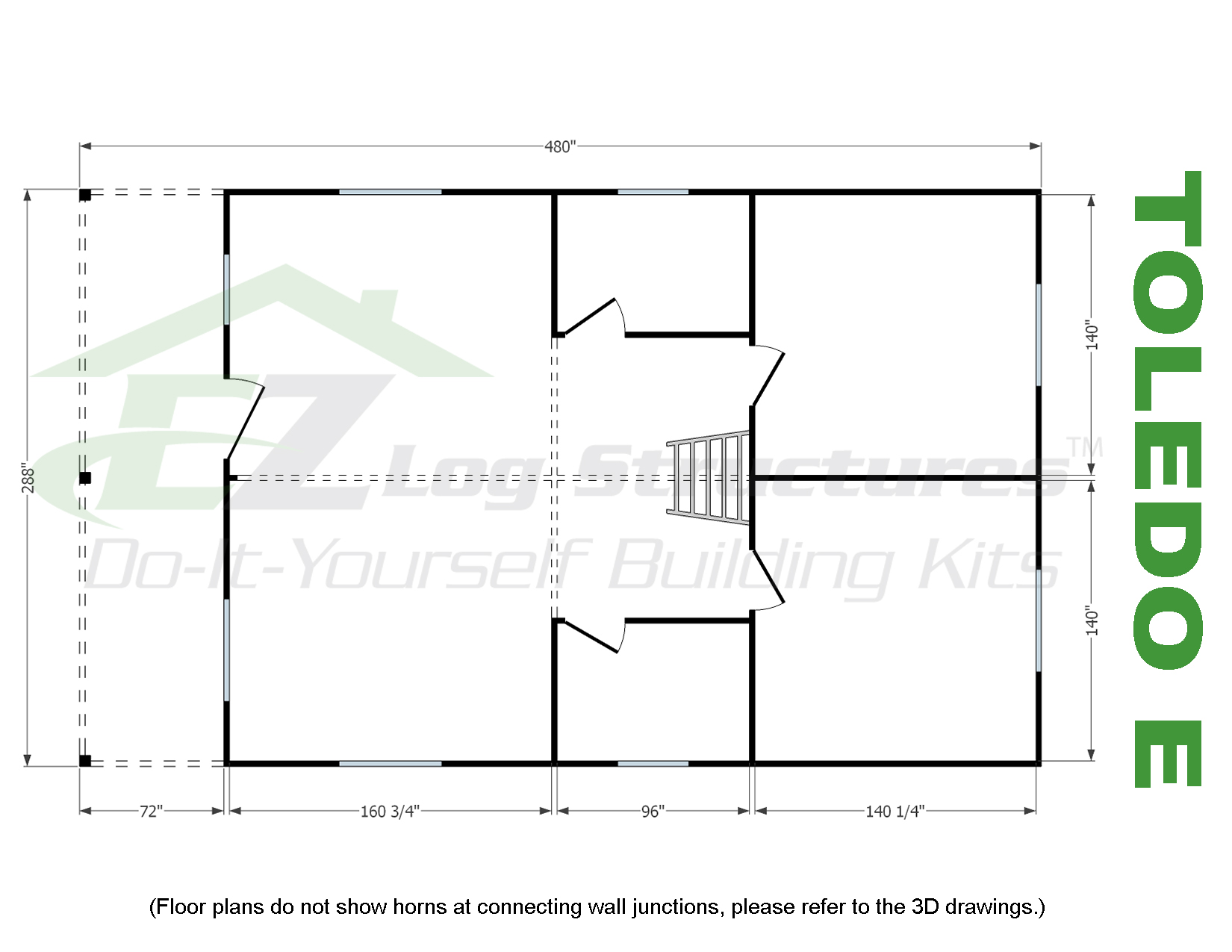

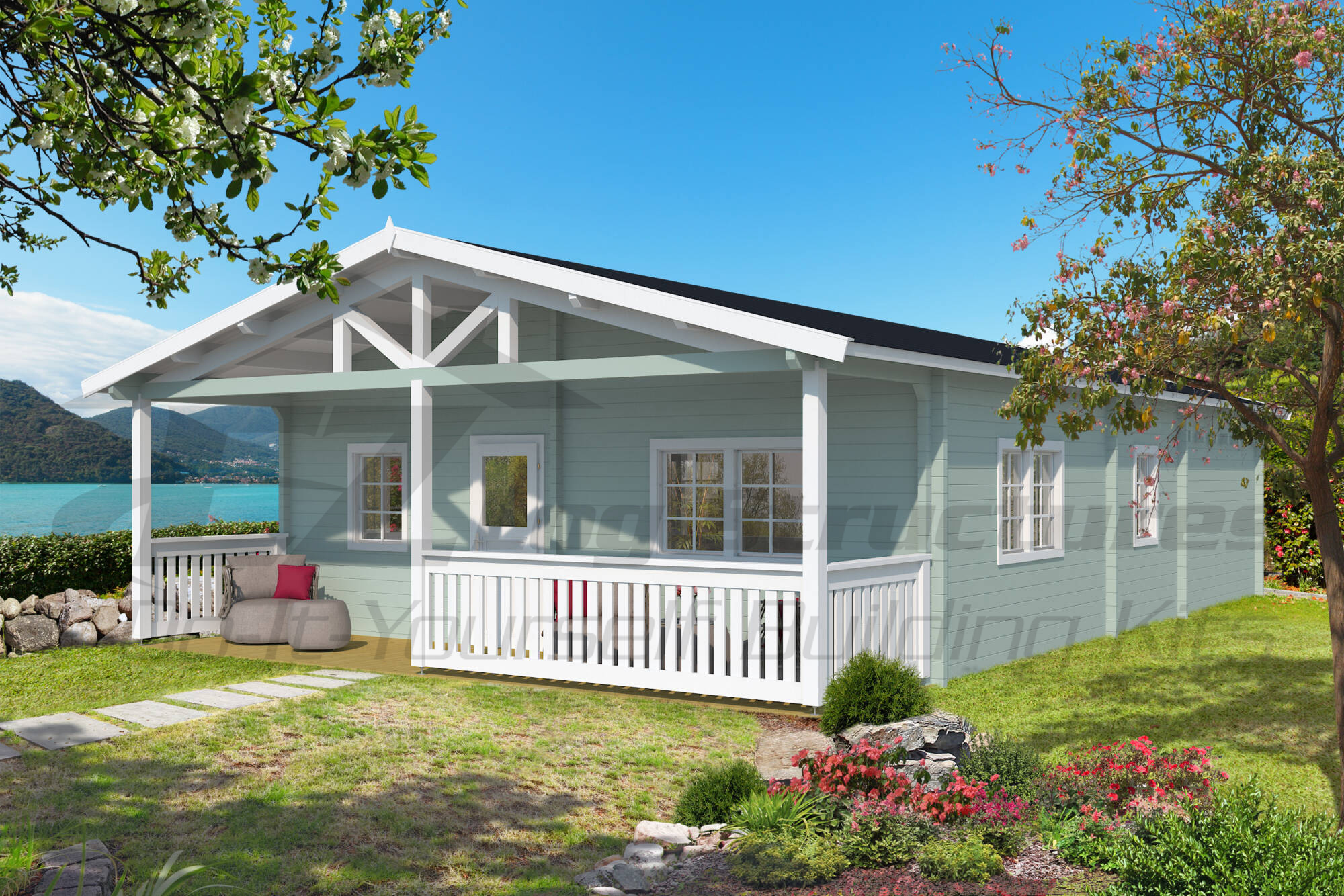

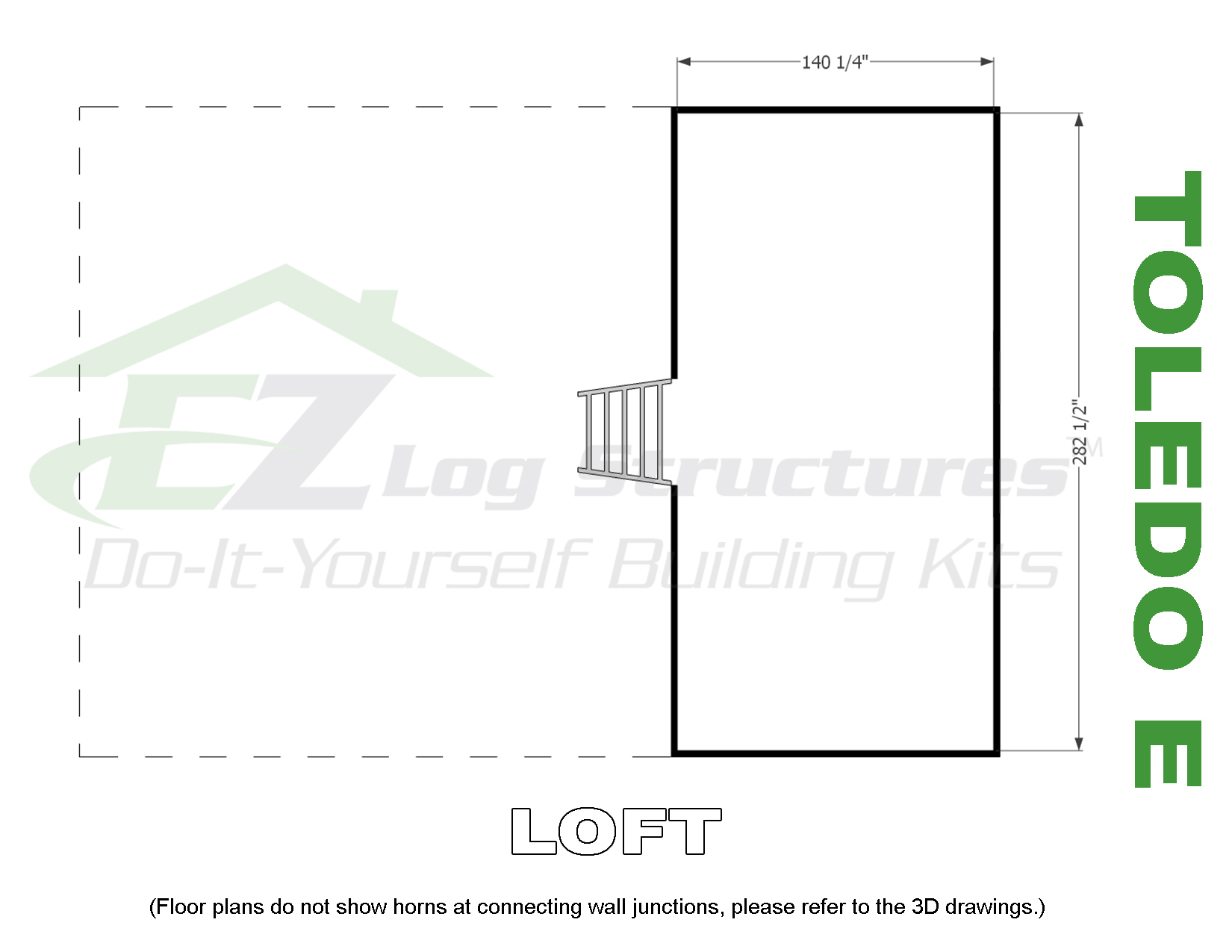

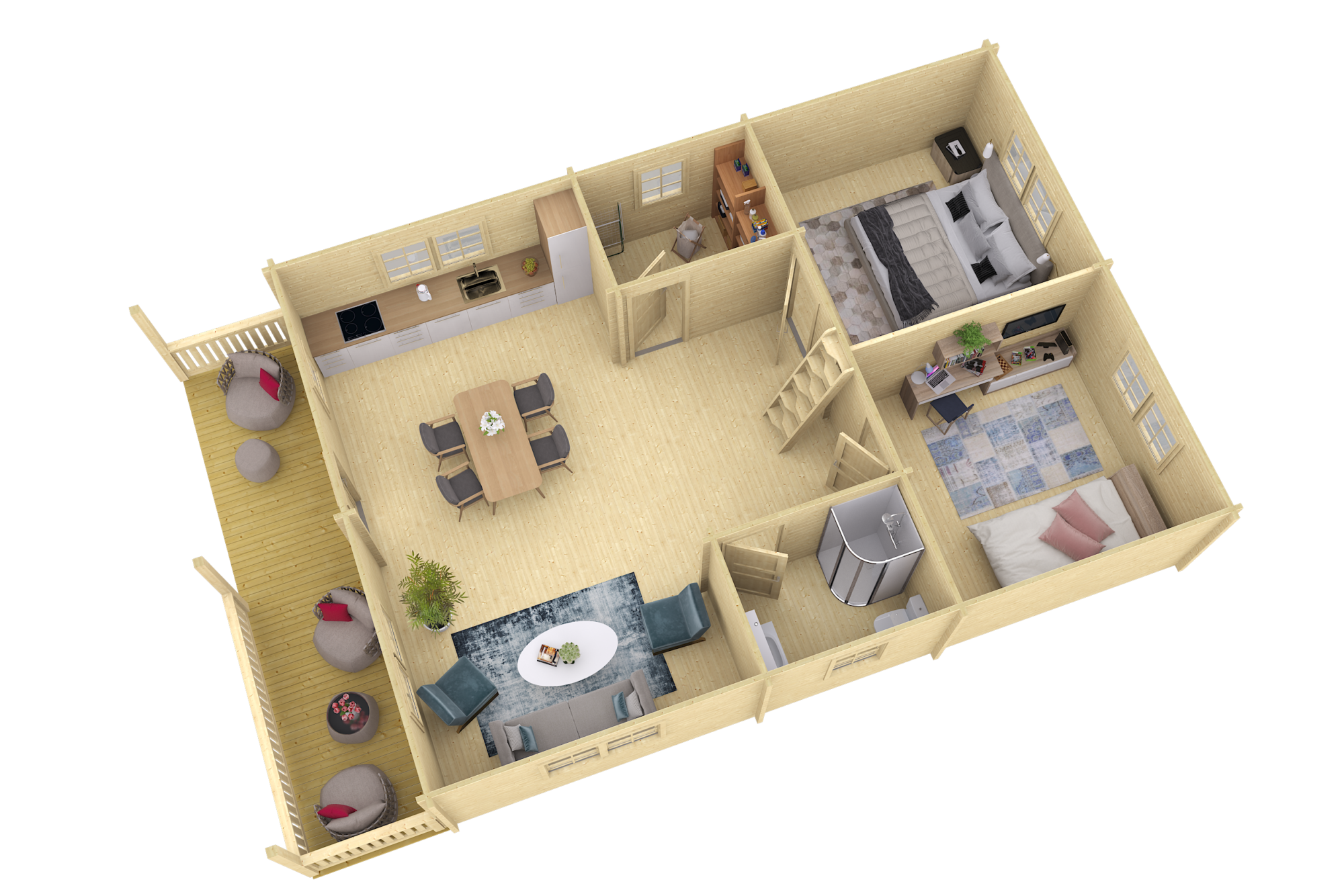

TOLEDO E Premium is an affordable cabin or home with a footprint is 24' x 40' (960 ft²). The interior is 24' x 34' with a covered deck of 24' x 6'. The main living room has vaulted ceilings, utility room, bathroom and 2 bedrooms with a loft of 280 ft².  (see below for a detailed list of what’s included)

Wall insulating kit:  Add 10%  Kit includes metal brackets & 3/4? tongue & groove wall cover boards for the perimeter walls being insulated.  Studs and insulation are supplied locally by the customer.

Exceptional energy efficiency:  When using 2×4 studs, the walls are insulated with R-12 or R-15 to meet building codes. If 2×6 studs are used, then R-20 or R-24 insulating is used. This combined with the solid wood walls provide unmatched thermal value with virtually no conductivity.

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Insulating the roof: This is done using locally supplied materials over the supplied tongue & groove roof boards. Build up to the required depth to house insulation and install metal roofing or shingles. High density spray foam provides maximum benefits,  highest R-value for thickness & is water proof

Assembly: total weight is approx. 18,636 lbs. The kit is ready to assemble on a wood floor or concrete slab and can be assembled in 8 days or less with 3 people

Building Codes: This model passes structural requirements for building codes in USA and Canada, and Title 24 for California. Modifications may be required for earthquake, heavy snow load regions and hurricane zones for a small upcharge

Tip: House wraps & vapor barriers are required in most regions when insulating. Vapor barriers are installed on the warm side of walls, interior of the studs for cold climates and exterior of studs for hot climates

Kit includes:
  • No floor ready to assemble on a concrete slab, wood floor over piers, crawl space or basement
  • Pre-cut, numbered exterior walls
  • Pre-cut, numbered interior walls
  • Pre-cut, numbered gable components
  • Vaulted/cathedral ceilings
  • Pre-cut, numbered roof purlins, beams
  • Pre-cut, numbered (18mm) 3/4? tongue & groove roof boards
  • Pre-cut, numbered loft floor beams
  • Pre-cut, numbered 28mm (1-1/8') tongue & groove loft floor boards
  • Loft ladder
  • Pre-cut, numbered fascia boards
  • Prebuilt sectional deck railings, vertical balustrades, handrail, adjustable posts
  • PREMIUM residential grade wood windows with trims
  • Entry doors, locks, deadbolts, keys, trims
  • Interior doors, hardware, trims
  • 2 Spare wall logs, spare roof boards
  • Log screws or threaded rods
