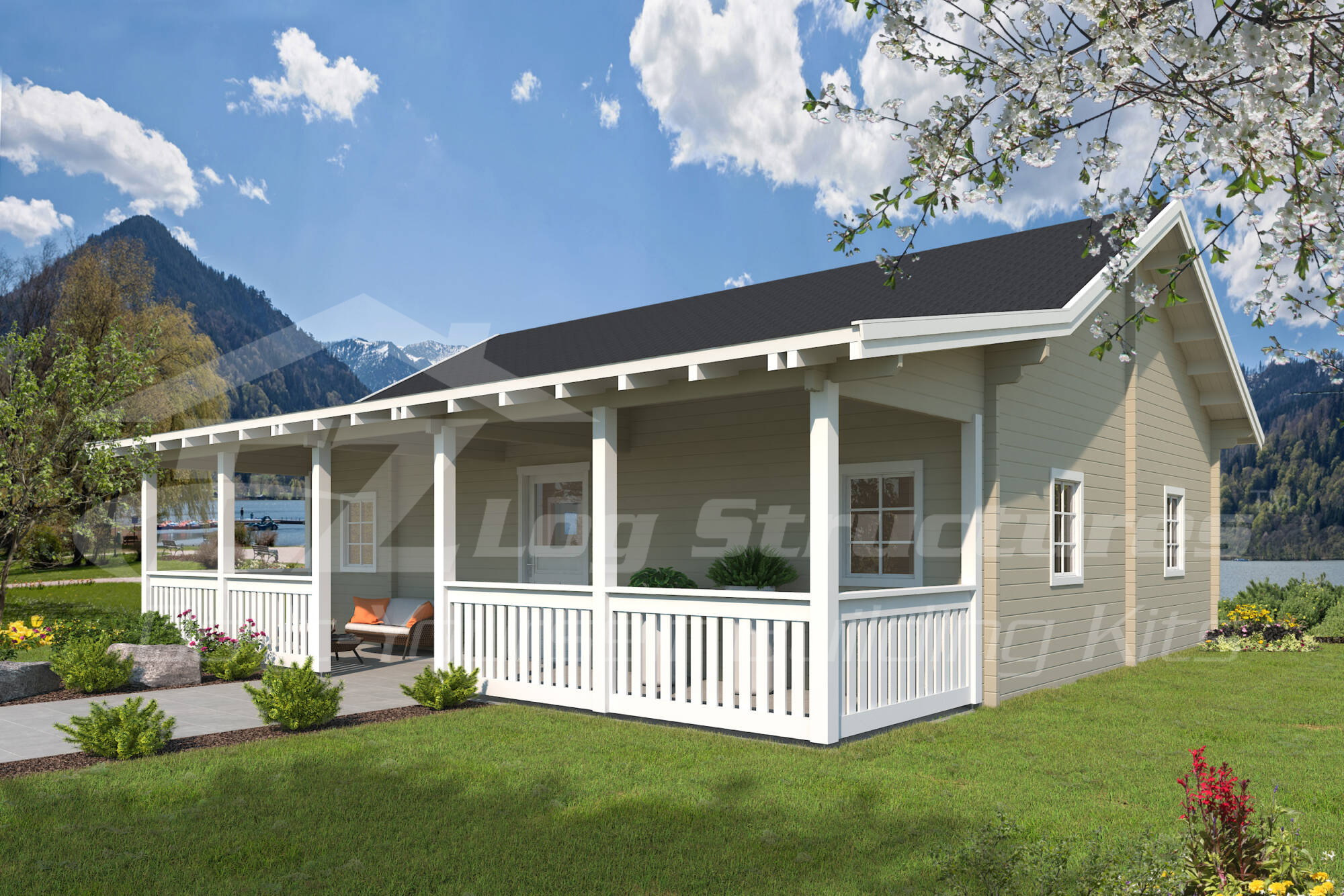

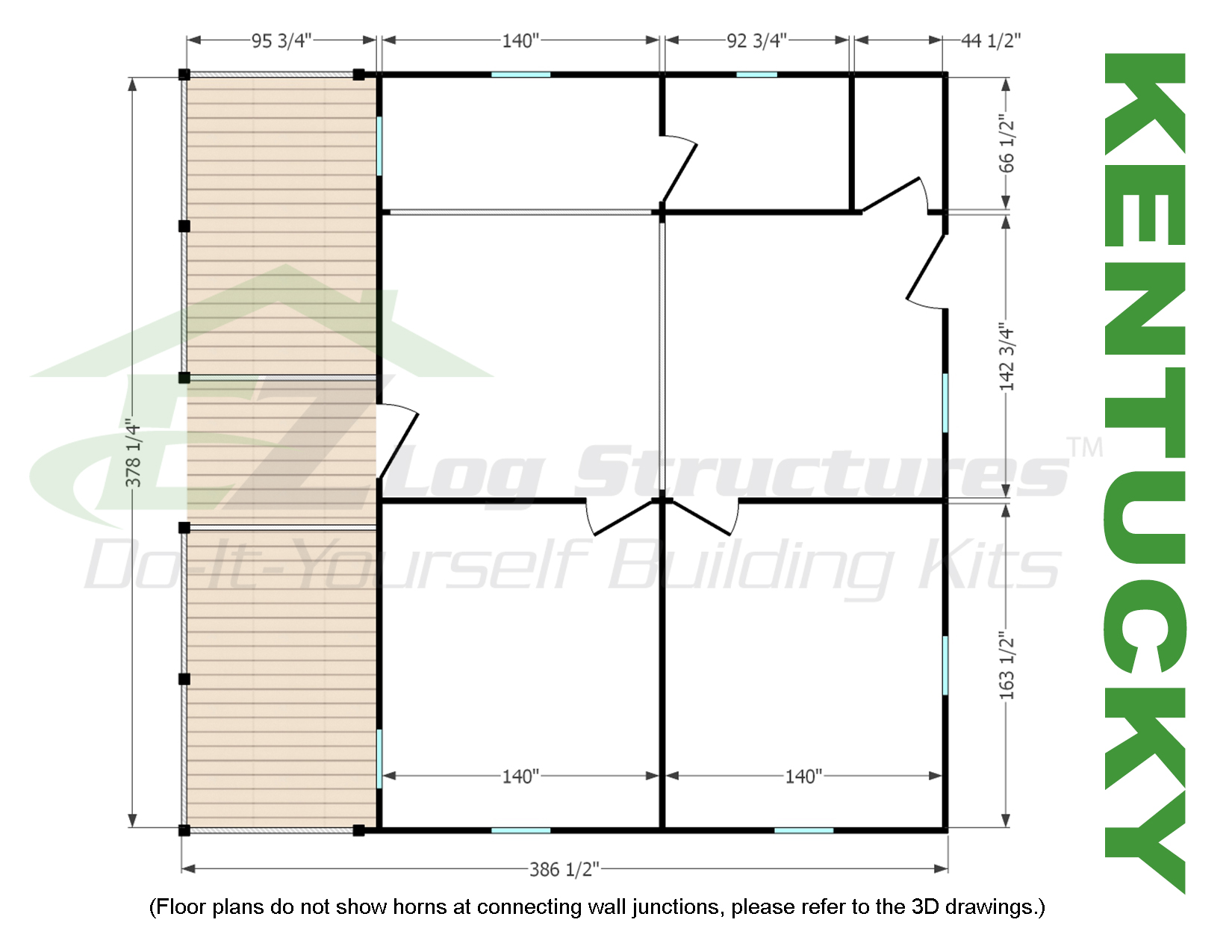

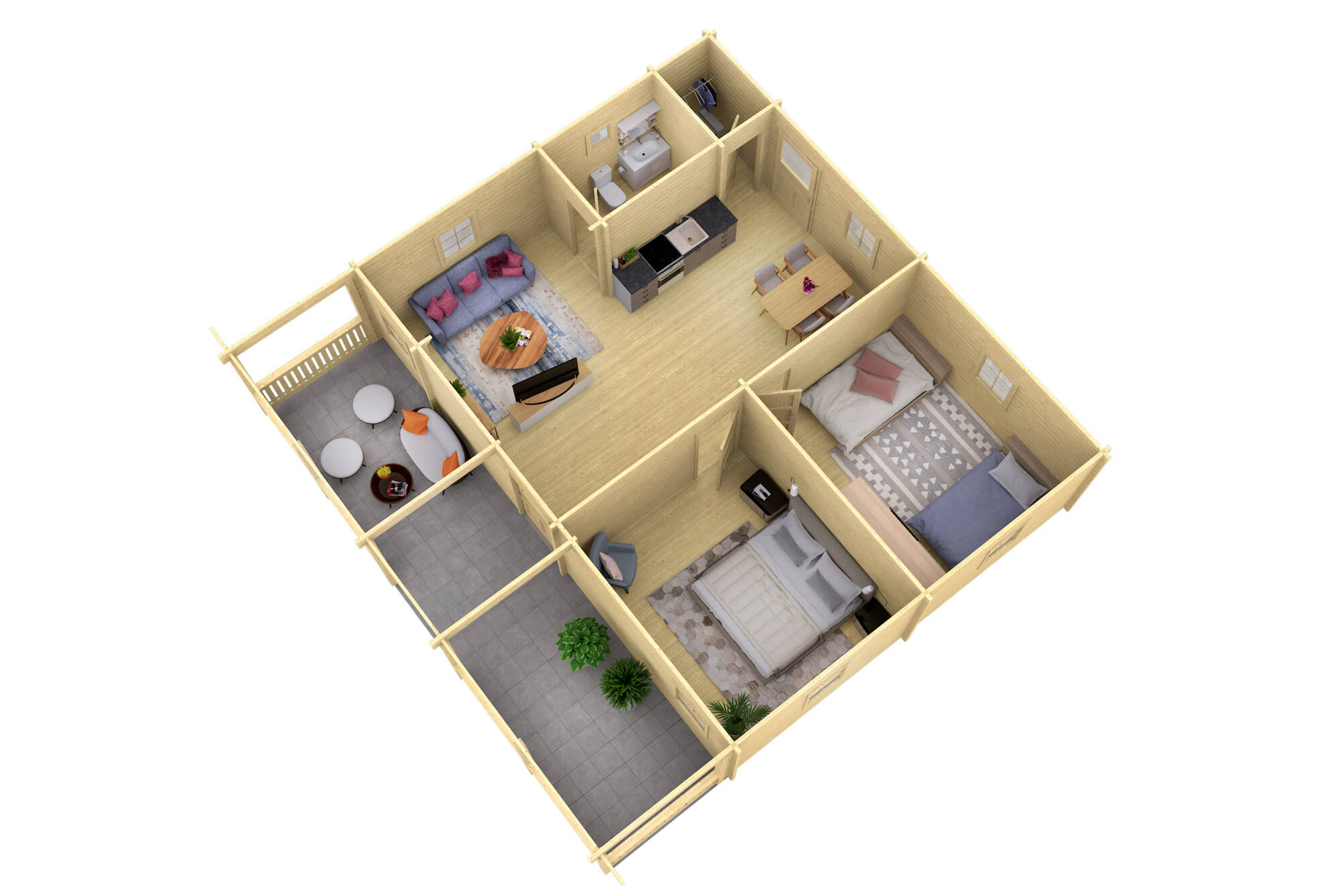

KENTUCKY has 70mm (2 3/4") wall logs.  The total footprint of this model is 32' x 32'  for 1024 ft² which includes the covered deck. The main building is 24' x 32' or 768 ft² with 2 bedrooms, bathroom, utility room and a large open living area. The side wall height is just under 10' with a ceiling height at the center of 16'.  The vaulted ceilings throughout provide a spacious open design. The front deck is 32' x 8' for a total of 256 ft² of covered area to relax. If additional space is needed, ask us about adding a loft over the 2 bedrooms.

Wall insulating kit: includes metal brackets & 3/4" tongue & groove wall cover boards made of matching wood.  Install studs using the brackets and then apply the interior wall cover boards over the studs. Add 10% to the selling price.

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Exceptional energy efficiency

Insulating the roof: This is done using locally supplied materials over the supplied tongue & groove roof boards. Build up to the required depth to house insulation and install metal roofing or shingles. High density spray foam provides maximum benefits,  highest R-value for thickness & is water proof

Assembly: This model can be assembled in 10 days or less with 3 people. Total weight is 8,480 KG/ 18,656 lbs. Kit is delivered to site, ready to assemble on a wood floor or concrete slab

Building Codes:  Passes structural codes in USA and Canada. No additional charges if upgrades are needed for earthquake, heavy snow load regions or hurricane zones

Tip: House wraps & vapor barriers are required when insulating. Vapor barriers are installed on the warm side of walls, IE: interior of the studs for cold climates, exterior of studs for hot climates

Structural Engineering: Kit includes in-house structural engineering, some regions may require a local engineer to stamp drawings

Kit includes:
  • No floor ready to assemble on a concrete slab, wood floor over piers, crawl space or basement
  • Pre-cut, numbered exterior walls
  • Pre-cut, numbered interior walls
  • Pre-cut, numbered gable components
  • Vaulted, cathedral ceilings
  • Pre-cut, numbered roof purlins, beams
  • Pre-cut, numbered (18mm) 3/4" tongue & groove roof boards
  • Pre-cut, numbered fascia boards
  • Prebuilt sectional deck railings, vertical balustrades, handrail, adjustable posts
  • Multi locking double glazed wood windows, trims
  • Entry doors, locks, deadbolts, keys, trims
  • Interior doors, hardware, trims
  • Threaded steel storm rods for perimeter wall junctions
  • 2 Spare wall logs/spare roof boards
  • 400 – 8" Log screws to connect first 2 rows,  gable components, purlins
