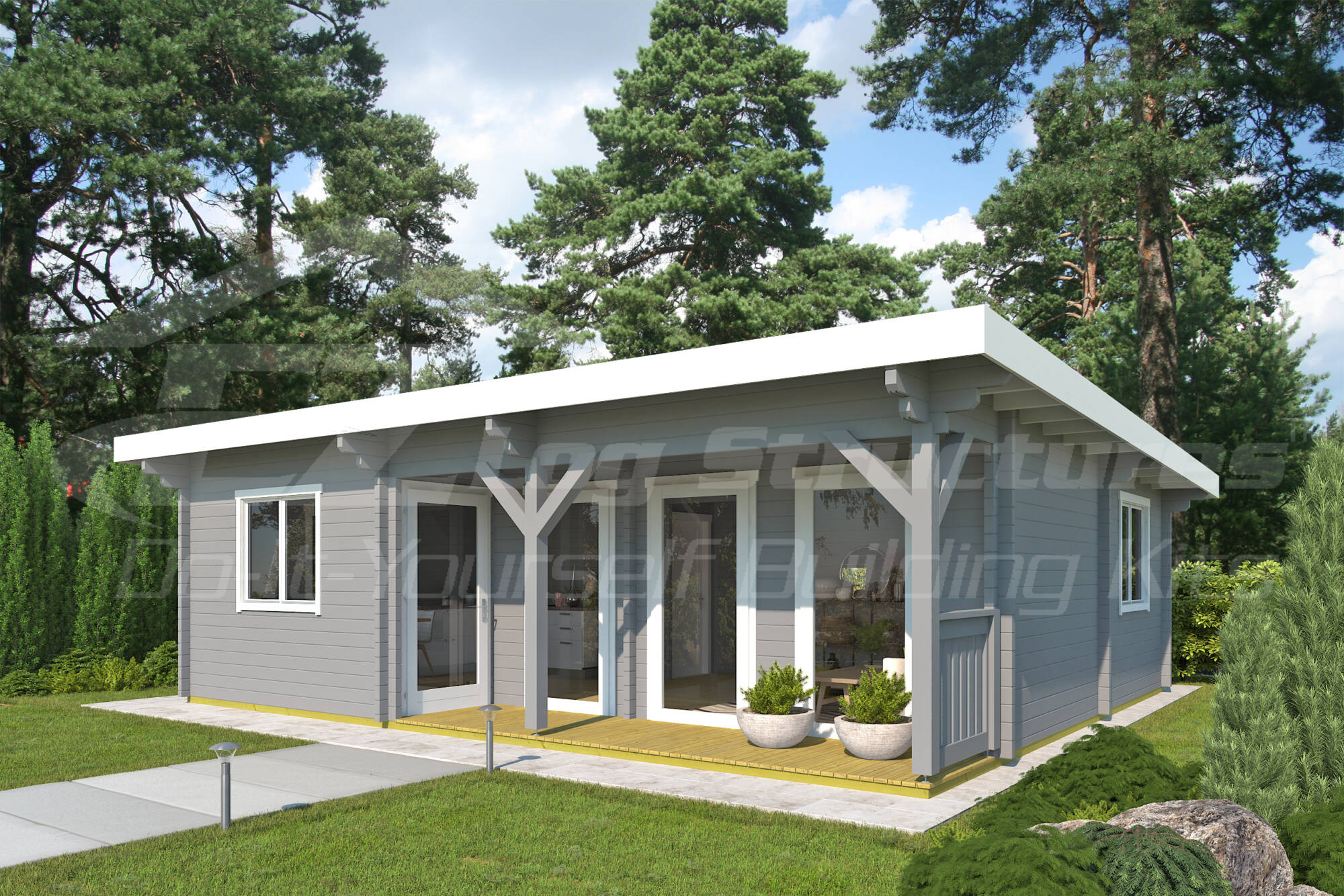

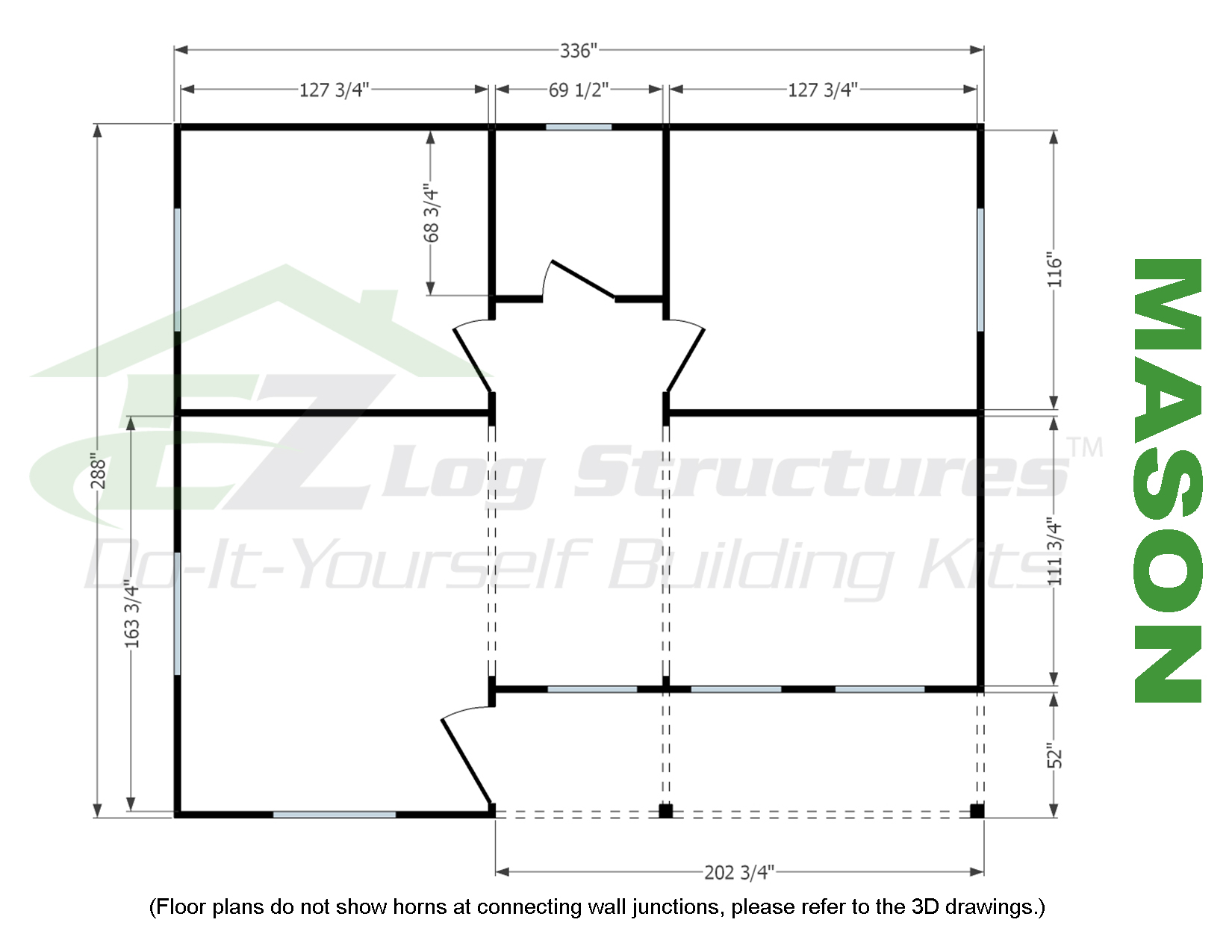

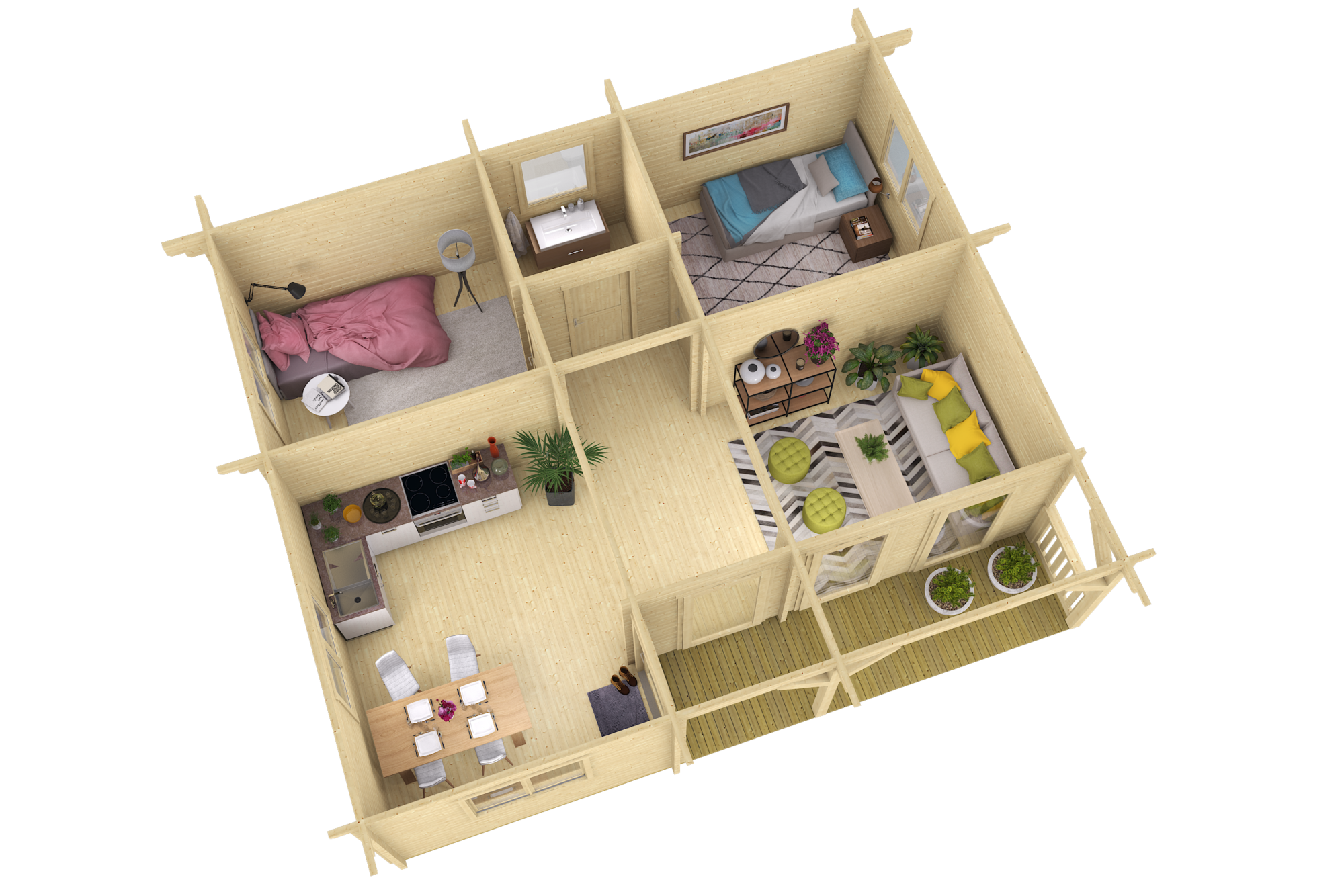

The Mason is a stylish 2 bedroom manufactured home or cabin with 70mm (2-3/4") thick wall logs . The total footprint is 28' x 24' (672 ft²) The vaulted/cathedral ceiling provides plenty of interior height. This floor plan can be modified at no additional cost, providing no extra materials are required. If you like the design and want to increase the overall size, let us know and a price will be provided.
Add 10% to sale price for AN insulating kit that includes: metal brackets to mount studs & 3/4" tongue & groove boards to apply over the studs
Solid wood walls of 2 3/4" thick have a thermal mass of R-12 … add R-15 insulation and achieve exceptional energy efficiency of R-27
Tip: Mineral wool insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass and is considered a GREEN building material, environmentally friendly.
Tip: House wraps & vapor barriers are required in most regions when insulating. Vapor barriers are installed on the warm side of walls, interior of the studs for cold climates and exterior of studs for hot climates.
Assembly: Delivered to site and ready to assemble on a wood floor or concrete slab, this model can be assembled in 10 days or less with 3 people.
Building Codes: This model passes structural requirements for building codes in USA and Canada and Title 24 approval for California. Modifications required for earthquake, heavy snow load regions and hurricane zones are provided with no additional charge.
Option: Eliminate the front entry overhang, move the living room wall out to increase the interior living space, no extra cost.
Option: This model can be insulated on the exterior. Studs are applied, install rigid board insulation, stucco wire and stucco the exterior.
High density board insulation has an R-value of 6 per” = R-24 plus the thermal mass rating for the 2 3/4" log of R-12 = R-36
- Ready to mount on slab or wood sub floor
- (70mm) 2 3/4" Pre-cut numbered exterior walls
- (70mm) 2 3/4" Pre-cut numbered interior walls
- Vaulted ceilings
- Roof purlins/beams
- 18mm (3/4") Tongue & groove roof boards, fascia trims
- Prebuilt deck railing, adjustable posts
- PREMIUM double glazed wood windows/trims
- PREMIUM entry doors c/w locks, deadbolts, keys/trims
- Interior doors c/w hardware/trims
- Spare wall logs
