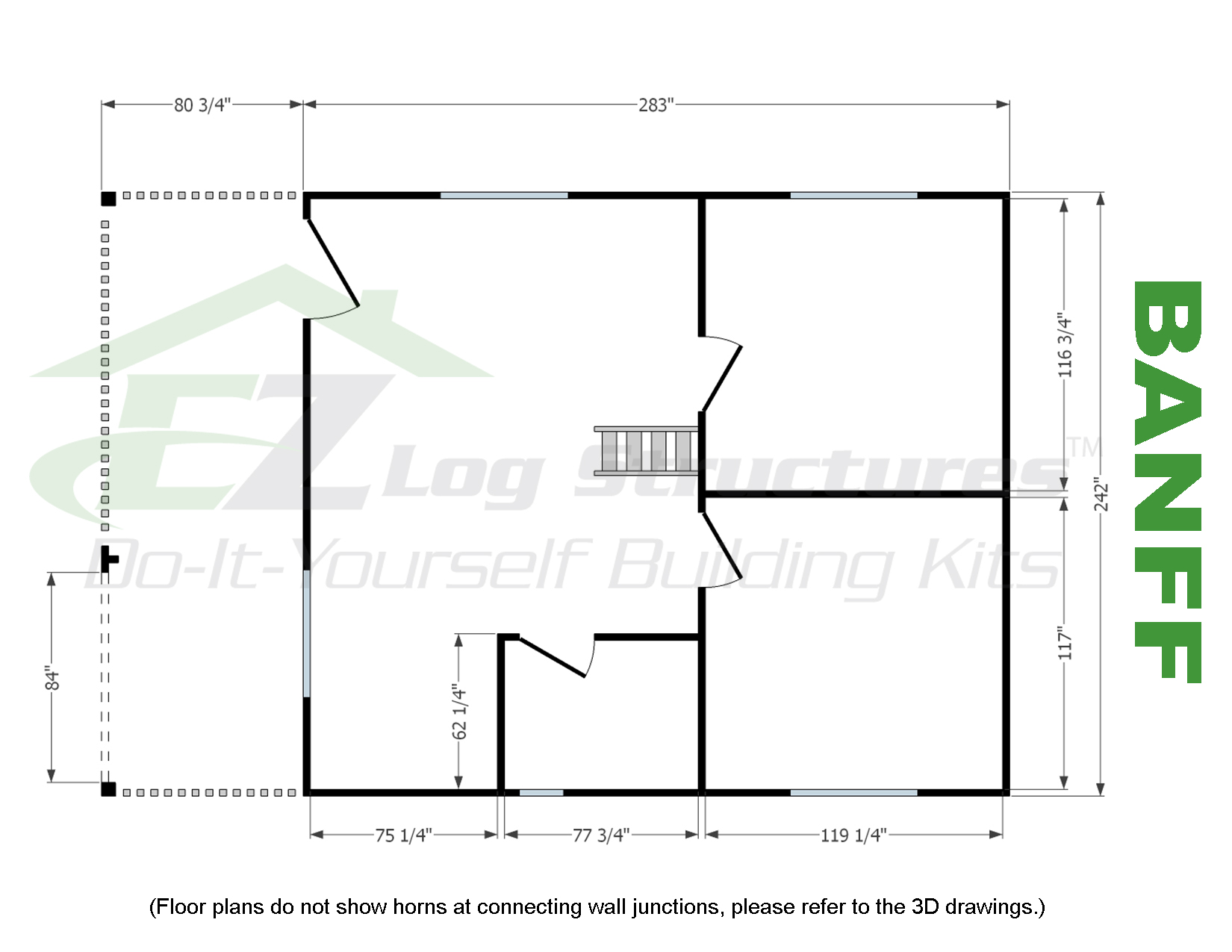

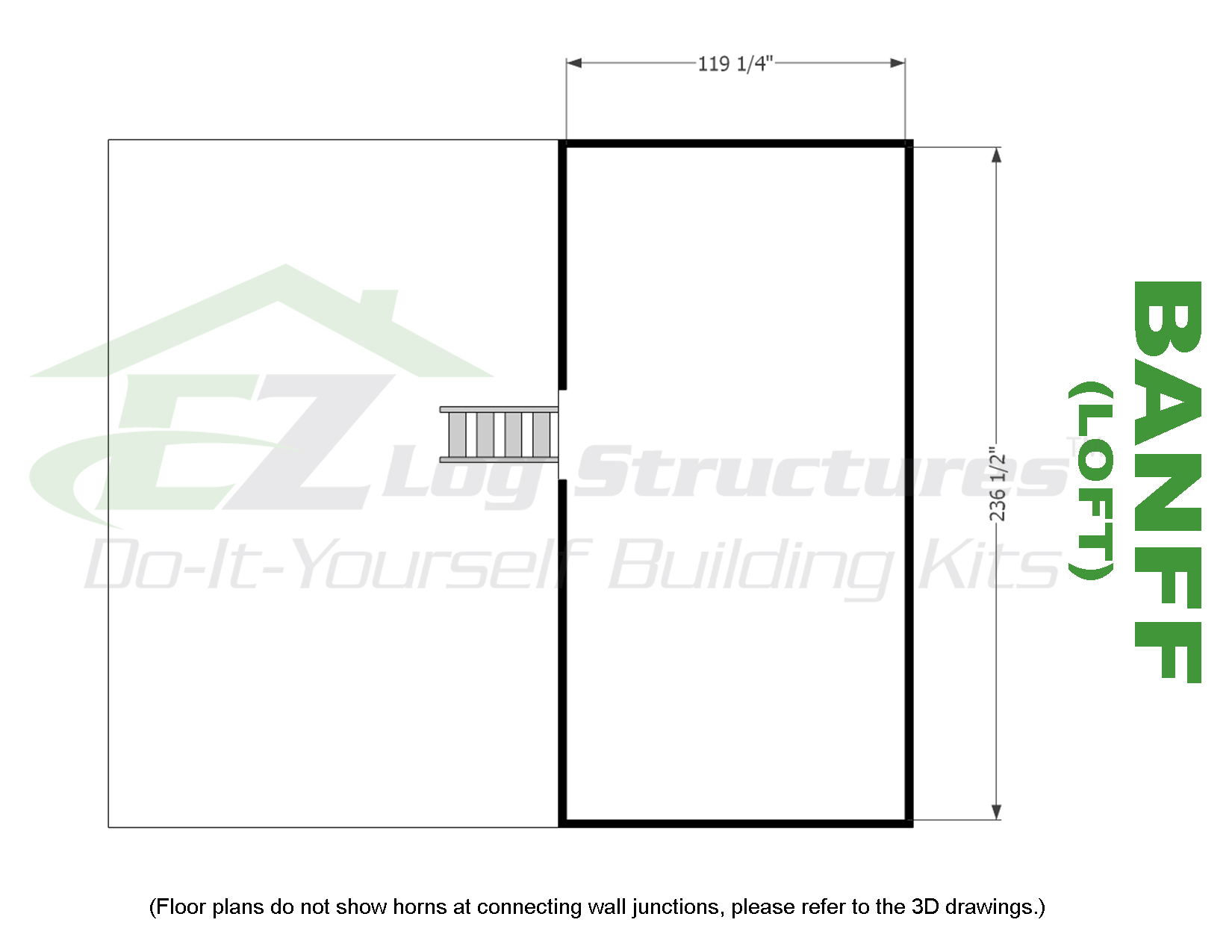

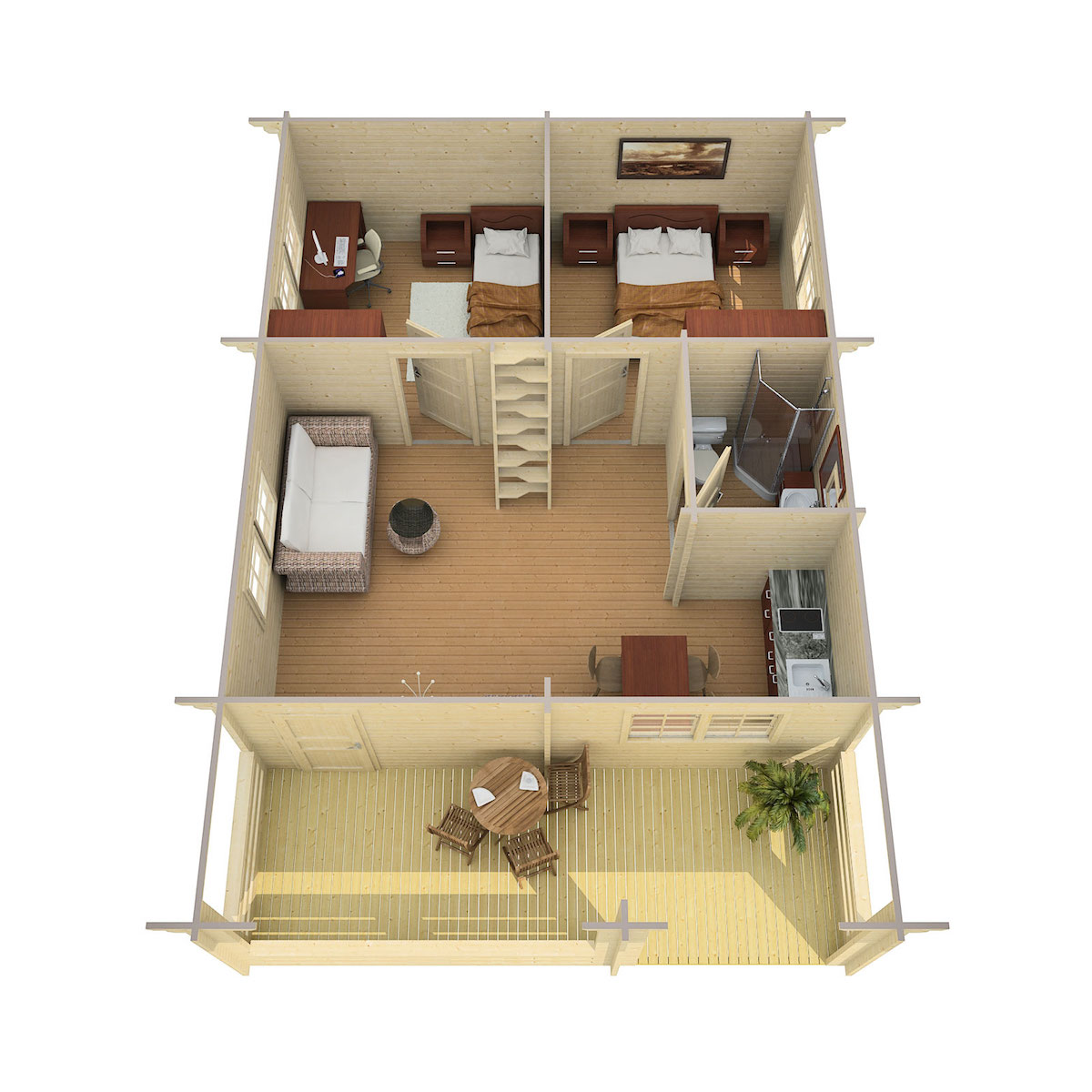

BANFF Premium has 70mm (2-3/4) thick wall logs. The footprint is 242" x 364" for a total of 612 ft² on the main level and 195 ft² loft over the bedrooms. The main cabin area is 475 ft² and the covered deck area is 134 ft². The cabin is ideal getaway or rental opportunity with 2 bedrooms, bathroom and a small usable loft.

Wall insulating kit: includes metal brackets & 3/4" tongue & groove wall cover boards made of matching wood. Install studs using the brackets and then apply the interior wall cover boards over the studs. Add 10% to the selling price.

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Exceptional energy efficiency: 2-3/4" solid wood walls have a tested thermal mass rating of R-12 and add R-15 mineral wool insulation to achieve R-27 in the walls

Insulating the roof: This is done using locally supplied materials over the supplied tongue & groove roof boards. Build up to the required depth to house insulation and install metal roofing or shingles. High density spray foam provides maximum benefits,  highest R-value for thickness & is water proof

Assembly: This model can be assembled in 8 days or less with 3 people. Kit is ready to assemble on a wood floor or concrete slab

Building Codes: Passes structural codes in USA and Canada.

Tip: House wraps & vapor barriers are required when insulating. Vapor barriers are installed on the warm side of walls, IE: interior of the studs for cold climates, exterior of studs for hot climates

Structural Engineering: Kit includes in-house structural engineering, some regions may require a local engineer to stamp drawings

Kit includes:
  • No floor ready to assemble on a concrete slab, wood floor over piers, crawl space or basement
  • Pre-cut, numbered exterior walls
  • Pre-cut, numbered interior walls
  • Pre-cut, numbered gable components
  • Vaulted, cathedral ceilings
  • Pre-cut, numbered roof purlins, beams
  • Pre-cut, numbered (18mm) 3/4? tongue & groove roof boards
  • Pre-cut, numbered loft floor beams
  • Pre-cut, numbered 28mm (1-1/8') tongue & groove loft floor boards
  • Loft ladder
  • Pre-cut, numbered fascia boards
  • Prebuilt sectional deck railings, vertical balustrades, handrail, adjustable posts
  • Multi locking double glazed wood windows, trims
  • Entry doors, locks, deadbolts, keys, trims
  • Interior doors, hardware, trims
  • Threaded steel storm rods for perimeter wall junctions
  • 2 Spare wall logs, spare roof boards
  • 400 - 8" log screws to connect first 2 rows, gable components, purlins
